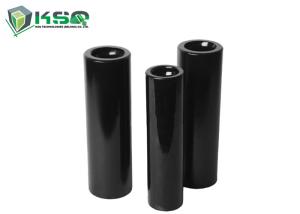

R51 Length 180mm Thread Drill Rod Coupling Sleeve for Connecting Rod and Drill Bit

Name: R51 Length 180mm Thread Drill Rod Coupling Sleeve for Connecting Rod and Drill Bit
Brand: MIROC
Price: 1 USD

Wholesale R51 Length 180mm Thread Drill Rod Coupling Sleeve for Connecting Rod and Drill Bit from china suppliers

Brand Name : MIROC

Model Number : R51 Length180mm Coupling Sleeve

Certification : ISO API

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000pcs per Month

Delivery Time : 5-10 Work Days

Packaging Details : Steel Bundle，Wooden Box

Product name : drill rod coupling sleeve

Usage : Underground Mining

Color : Green,Black,Yellow and other

Application : Drifting and Tunneling

Material : Carbide

Type : drill sleeve

Contact Now

R51 Length180mm Thread Drill Rod Coupling Sleeve for Connecting Rod and Drill Bit

Thread R38 T38 T45 T51 Coupling Sleeves for Bench Drilling , High Wear Resistance

Couplings sleeve are used to well connect the shank adapter to the drill rods

or well contact two extensionrods for transmitting energy. It has standard type

coupling and crossover coupling.

Applications
R25, R28, R32, R38
Used in drifting and tunneling.

T38, T45, T51
Used in benching and long hole drilling.

Processing
CNC milling and proprietary heat treatment process

Applications of rock drilling tools
• Underground mining
• Tunneling,quarrying

Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

We can design and manufacture the personalized products to meet your specical apllication,
such as changing the length, diameter etc.

Basic Information

Product Name:	Thread coupling sleeve
Thread	R25,R28,R32,R38,T38,T45,T51
Diameter	35mm-77mm (or 1 3/8 inch to 3 inch)
Length	150mm-235mm (or 6 inch to 9 1/4 inch)
Material:	High strength alloy steel bar
Type	full-bridge, semi-bridge etc.
Color	Green, Gold, Black or based on customer requirements.
MOQ:	No MOQ required for testing and trial order

R51 Length 180mm Thread Drill Rod Coupling Sleeve for Connecting Rod and Drill Bit
